Grid Mission

Guide on how to plan a grid mission on FlytBase

PreviousPath MissionNextImporting a Mission using KML file

Last updated 20 days ago

Was this helpful?

A Grid Mission consists of a series of straight-line flight paths that run parallel to each other. These missions are commonly used for imaging and surveying applications. FlytBase enables the creation and modification of grid missions by allowing users to control parameters such as Ground Sampling Distance (GSD), Front Overlap, Side Overlap, and more.

Plan a Grid Mission

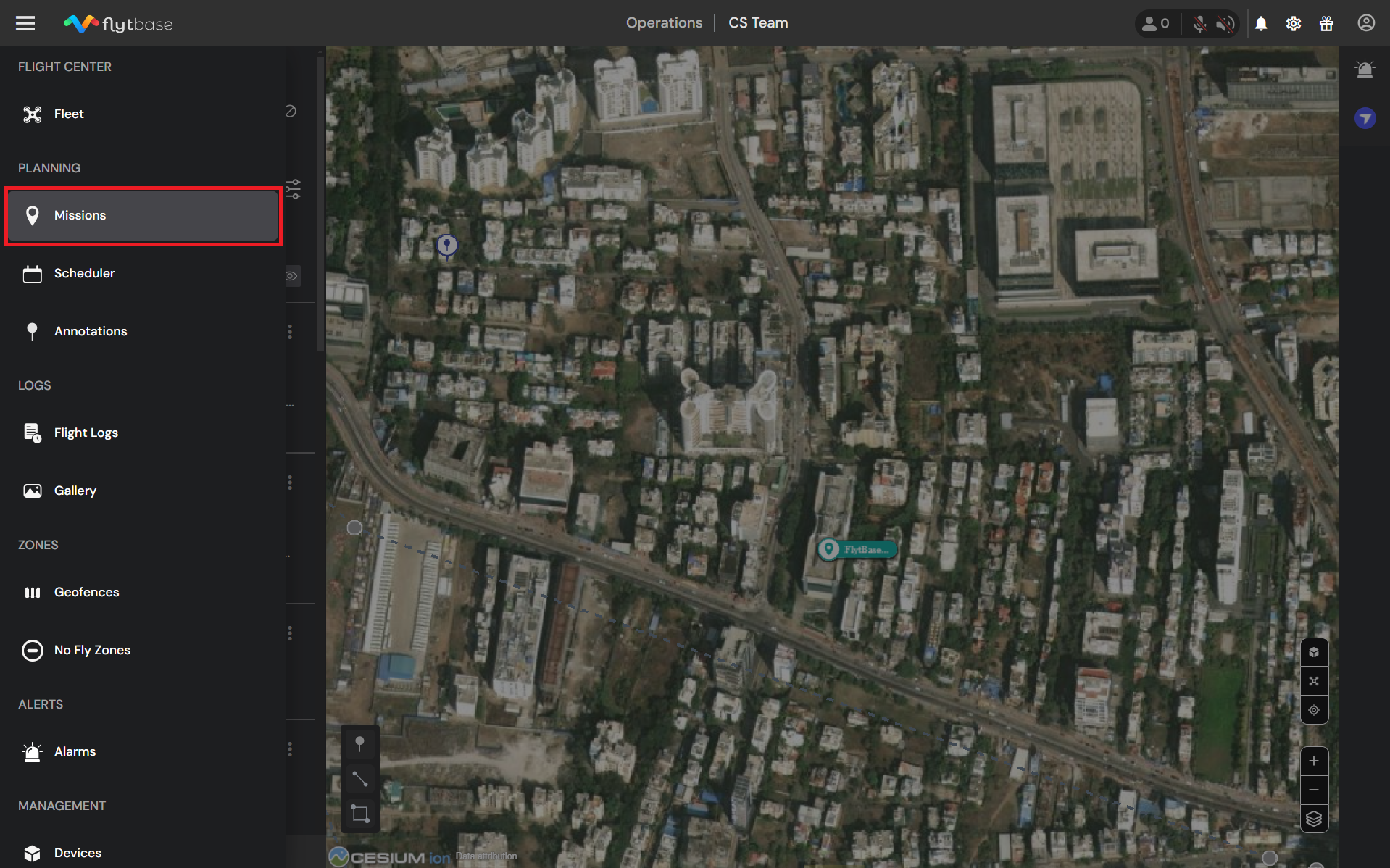

  • Go to the Navigation Drawer and select the Missions tab under the Planning section.

  • Under the Grid Mission section, select Create Mission.

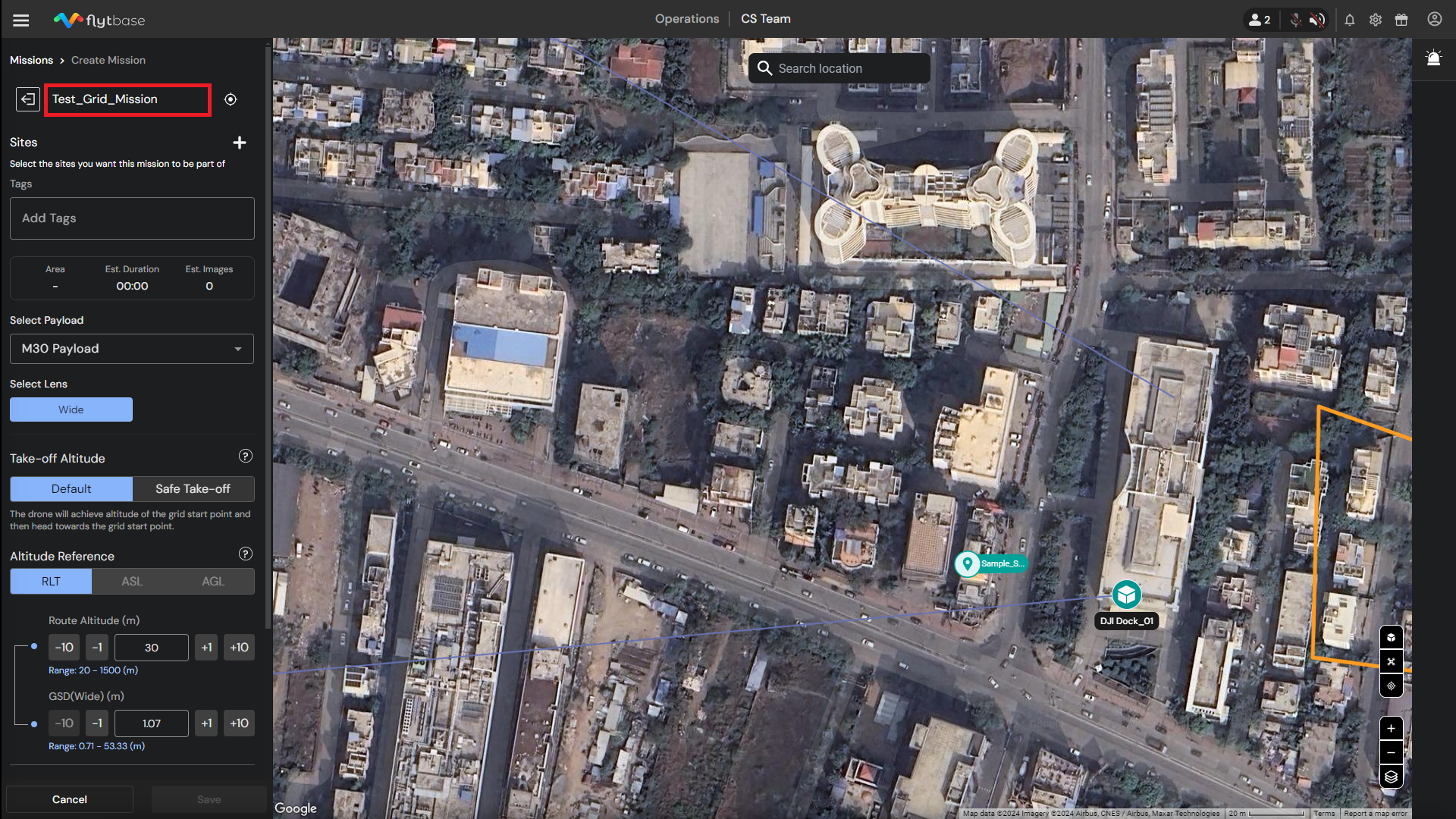

  • Provide a name to the new mission.

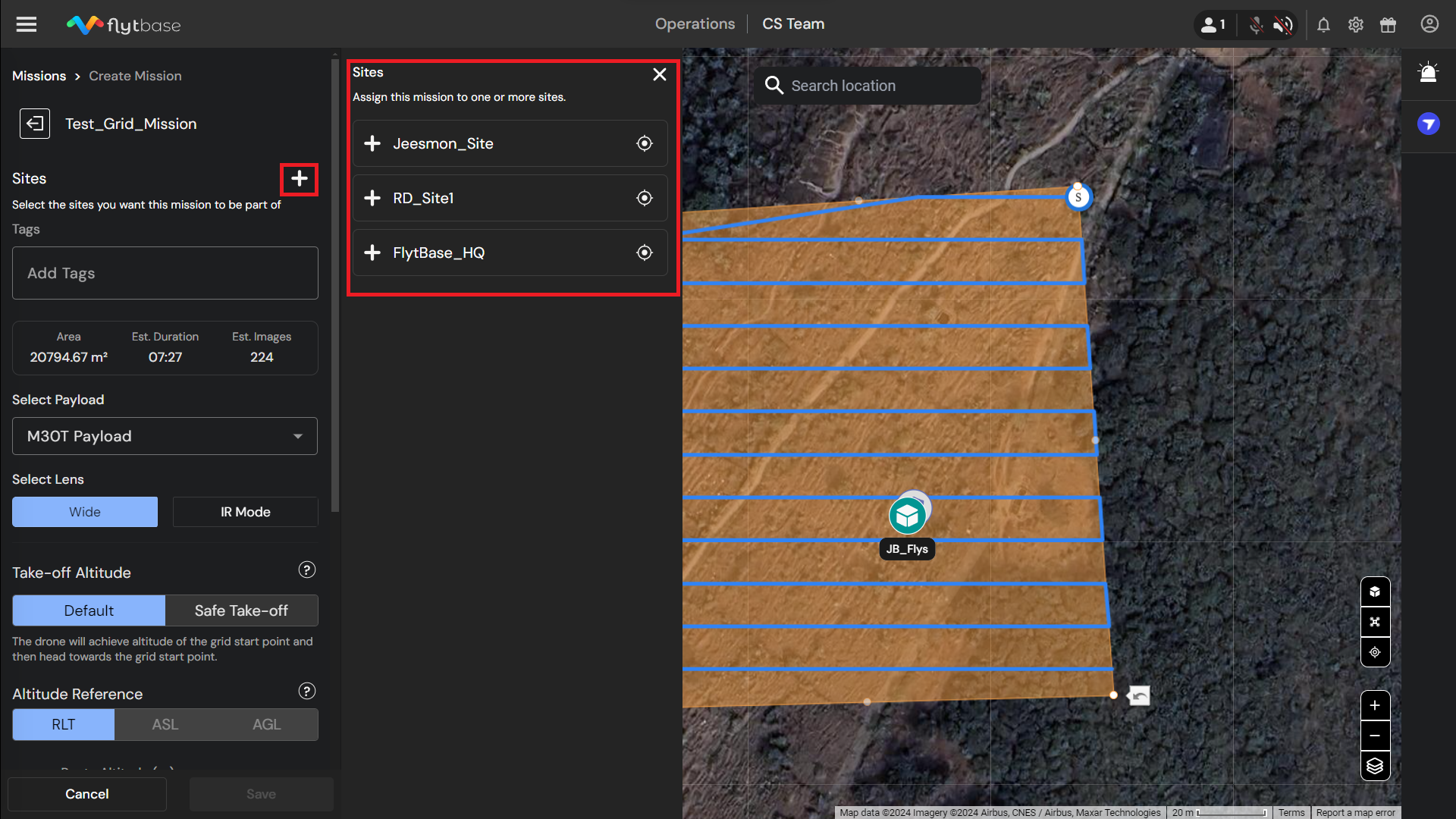

  • Assign a Site for the particular mission.

You can assign multiple Sites for a mission.

To learn more about Sites, refer to the following documentation:

  • Add Tags to your mission to improve mission management.

To learn more about Mission Management, refer to the following documentation:

  • Simply left-click on the map to create a grid. Adjust the vertices of the polygon according to your preferences. The S annotated on the grid represents the Grid Start Point.

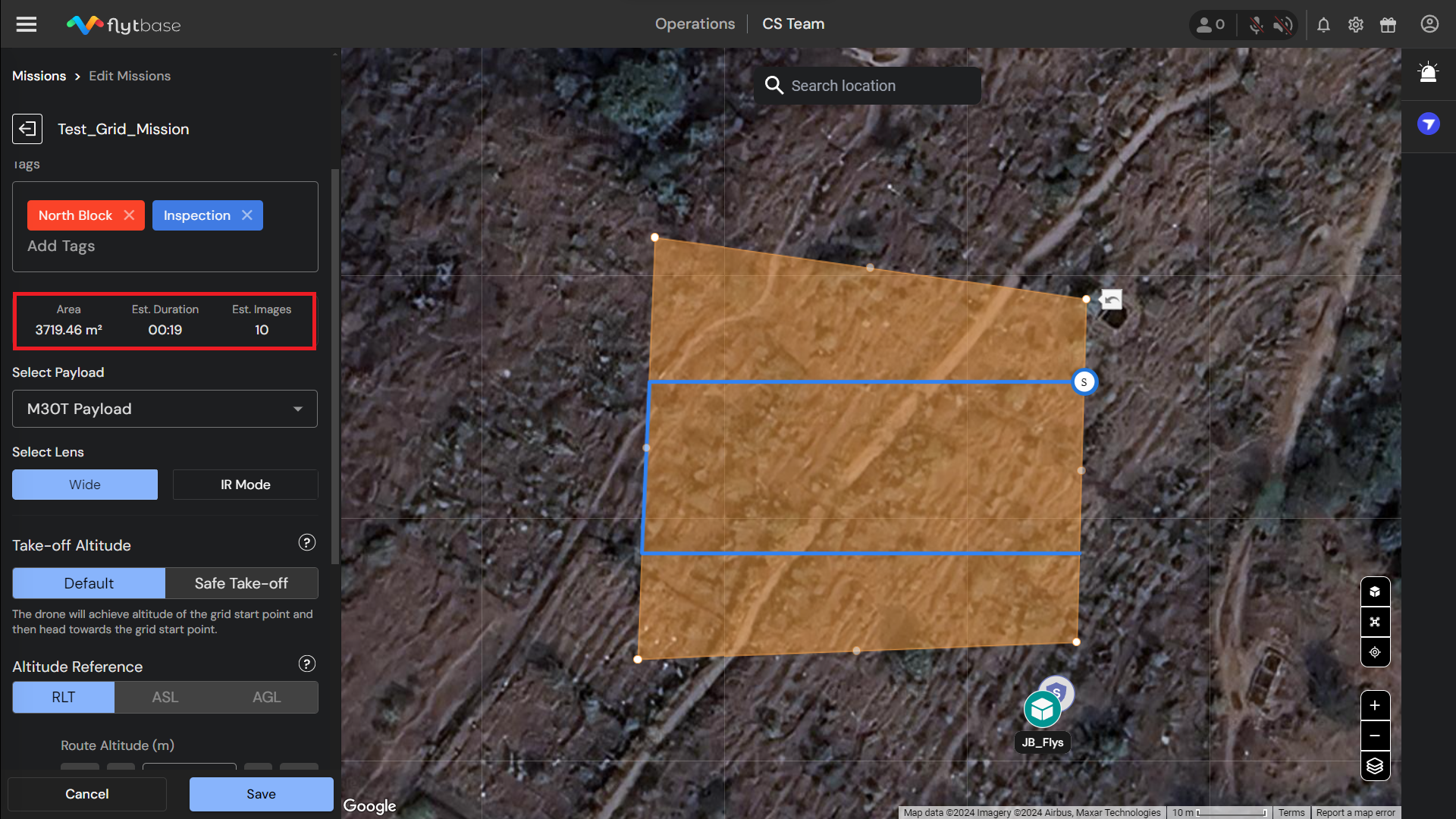

  • After creating the grid, mission details like the Total Area covered, Estimated Time to complete, and Estimated Number of Images to be taken can be found below Tags. This information helps in customizing the mission settings according to user preferences.

Configuring Grid Mission Parameters

1. Select Payload

Select the drone payload to be used during the mission. You can select either M30 Payload or M30T Payload based on the available hardware.

2. Select Lens (Imaging Sensor)

Based on the selected payload, you can now select the imaging sensors that would be used while executing the mission.

  • In the case of M30 Payload, you can use the Wide-Angle lens.

  • In the case of a M30T Payload, you have the option to either select the Wide-Angle imaging sensor, IR Mode imaging sensor, or both. When both sensors are selected, the GSD settings for them are displayed below the Route Altitude tab.

3. Take-off Altitude

The drone achieves a set Take-off Altitude and then proceeds to start the Grid Mission. Following are the different modes that you can select from:

  • Default Take-off Altitude The drone achieves the altitude of Grid Start Point (i.e., Route Altitude), and then proceeds towards it.

You can set the Take-off Altitude for a particular device by navigating to Devices -> Select Device -> Settings -> Drone Control. The take-off altitude you set during mission planning will take precedence over the default values set in Settings.

  • Safe Take-off Altitude The drone achieves the 'Safe Take-off Altitude’ and then diagonally proceeds to the Grid Start Point.

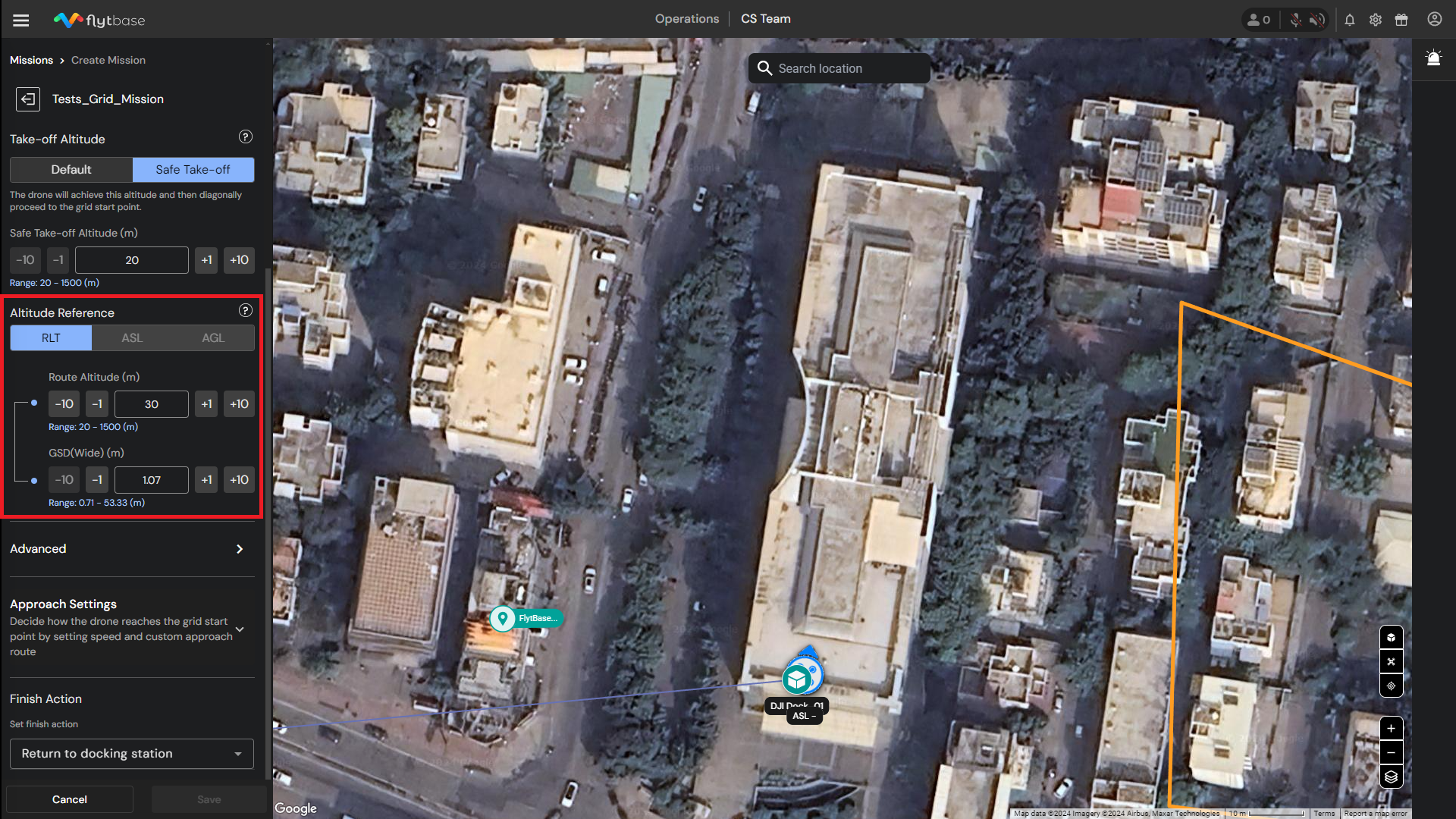

4. Altitude Reference, Route Altitude, and GSD

There are three types of Altitude References that you can select from:

  • Relative Take-off Point (RLT) Relative altitude is measured from the take-off point. Additional care should be taken when planning close to ground in uneven terrain. Route/waypoint altitude needs to be adjusted based on terrain height.

  • Above Ground Level (AGL) Altitude set with reference to the ground level. Reliable ground elevation data is essential for using this option safely. This mode is best suited to follow the terrain automatically to maintain a specific elevation relative to the ground at any point in the mission.

Currently, only RLT Altitude configuration mode is active on the Dashboard.

  • After selecting the Altitude Reference, you can set the following mission parameters:

    • Route Altitude: The altitude at which the drone will execute the Grid mission.

    • GSD (Ground Sample Distance): GSD refers to the dimensions of a single pixel in an image (cm/px), as measured on the ground. It is calculated based on the drone's sensor properties and the focal length, as well as the altitude at which the drone is executing the mission.

The GSD is calculated based on the Route Altitude and vice versa.

You can also set the Route Altitude by accessing Settings -> Flight Configuration. The altitude set during mission planning will take precedence over the default value specified for flight altitude in Flight Configuration.

Ground Sampling Distance (GSD) helps in the efficient planning of grid missions. It enables the calculation of the optimal altitude and speed at which the drone should fly to achieve the desired image resolution, ensuring coverage of the target area without unnecessary data overlaps or gaps. For precise measurements, detailed site inspections, and accurate volumetric calculations, a lower GSD is preferable as it captures more detail.

5. Advanced Mission Settings

You can configure the following mission parameters within Advanced Settings:

Grid Route Speed

Set the speed at which the drone would fly over the grid flight path.

The suggested Grid Route Speed is smartly calculated based on the selected Route Altitude and GSD.

Changing the recommended Route Speed may impact the amount of images captured during the mission.

Grid Angle

The grid angle can be adjusted to change the orientation of the grid.

Route waypoint type

You can configure the drone’s flight path using the following waypoint options:

  • Linear path Drone takes a straight path and stops at each waypoint for precise tasks like inspection or image capture.

  • Transits waypoint Drone flies through each waypoint along a curved path without stopping, ideal for smooth and fast missions

  • Curved route, stops at waypoint Drone follows a curved path and stops at each waypoint to enable smooth transitions with accurate data capture

  • Curved route, drone continues Drone moves at a constant speed through curved paths without stopping, perfect for continuous or cinematic flights.

  • Controlled radius Drone turns at waypoints using a set turning radius for smooth, consistent curves useful in mapping or surveying. The waypoint radius would need to specified here.

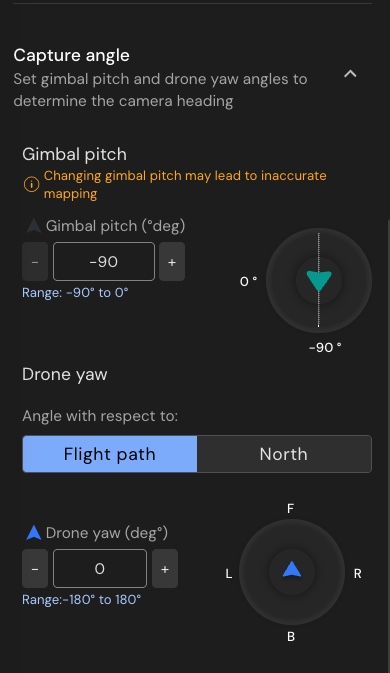

Capture Angle

Following parameters can be set to orient the camera in the desired direction:

  • Gimbal Pitch: The camera will point up or down depending on the value of this parameter.

  • Drone Yaw: Set the yaw angle at which the drone would conduct the mission. The yaw angle can be configured relative to the Flight Path or North depending on the requirements.

The drone's yaw is locked at the set angle relative to the reference axis (Flight Path or North) and will not change as the mission progresses.

Image Overlap

Image Overlap parameters affect the percentage of region photographed that would be common between two consecutive images taken along the flight path, or two images taken over adjacent flight paths. Changes in these parameters affect the Route Speed and Grid spacing. Moreover, changes in overlap parameters can affect the time taken to process the images and the quality of output obtained after processing.

  • Front Overlap: Front Overlap refers to the overlap between two consecutive images taken along the flight path of the drone. It is the percentage of overlap between the front end of one image and the back end of the preceding image. The primary purpose of front overlap is to ensure that there is sufficient coverage and redundancy in the captured images for creating accurate and seamless maps or 3D models. High front overlap is essential for photogrammetry, where multiple viewpoints of the same area are required to stitch the images together accurately.

  • Side Overlap: Side Overlap refers to the overlap between images captured across adjacent flight paths. It is the percentage of overlap between the side of one image and the side of another image from a parallel flight path. Similar to front overlap, side overlap ensures comprehensive coverage of the area being mapped or modeled. It helps in accurately aligning and stitching together images from different flight lines, crucial for creating uniform, high-quality maps or 3D models without gaps.

6. Approach Settings

For increased safety and efficiency, users can configure the approach path and speed leading to the starting point of a grid mission. This feature provides greater flexibility in designing and aligning the grid mission to meet specific requirements. The following approach parameters can be controlled:

  • Approach Speed: Set the drone's speed for approaching the mission's starting point.

  • Custom Approach Route: Use the toggle button to enable a custom approach route. If not enabled, the drone will fly directly from its dock to the grid mission's start point in a straight line.

  • Setting an Approach Route:

    1. Click on the map to mark the starting point of the approach path.

    2. Drag and drop waypoints (midpoints of straight line segments) between this start point and the grid mission's start point to create the desired approach path.

  • Managing Waypoints:

    1. Waypoints are listed for easy navigation; use the left and right arrows to view all waypoints.

7. RF Link Loss Condition

This setting defines the drone's behavior in the event of RF link loss. Users can configure it to either continue the mission or initiate a Return-to-Home (RTH) procedure.

8. Positioning Accuracy

Different positioning accuracy options can be configured here:

  • GNSS : Relies solely on satellite positioning to guide the drone. Suitable for operations where centimeter‑level precision is not critical. The accuracy range is as following:

    • Horizontal: ± 1.5 m

    • Vertical: ± 0.5 m

  • RTK : Switches to Real‑Time Kinematic corrections for ultra‑precise navigation Recommended for applications requiring ultra‑precise station‑keeping such as mapping using grid missions. The accuracy range is as following:

    • Horizontal: ± 0.1 m

    • Vertical: ± 0.1 m

9. Finish Action

Choose the finish action for the drone when it completes the grid mission. Here are the different finish actions that you can configure:

  • Return to Docking Station (RTDS) - The drone goes back to the docking station.

  • Exit Mission and Hover - The drone hovers at the end point of the grid.

  • Go to First Waypoint and Hover - The drone moves to the start point of the grid and hovers there.

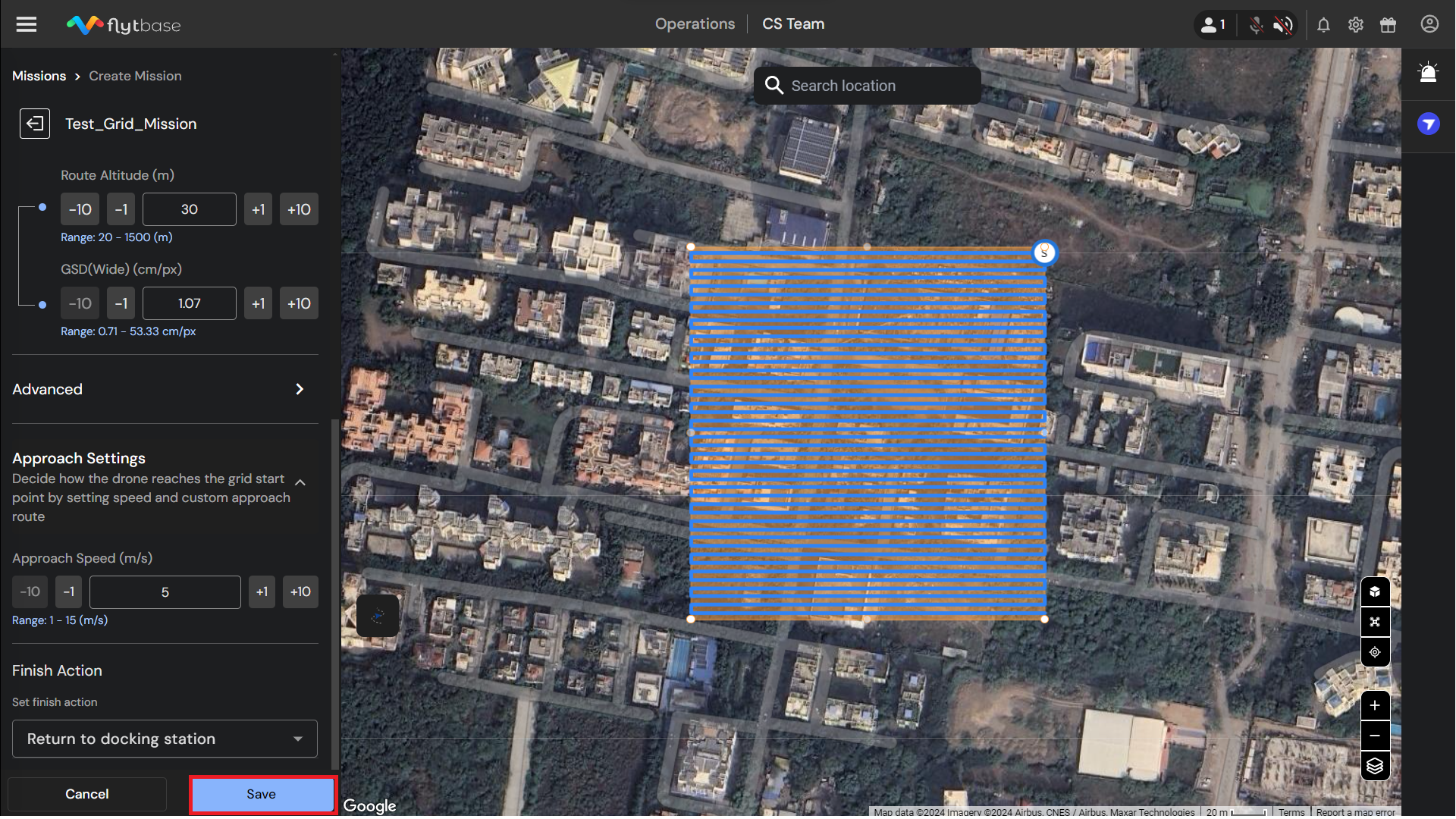

Once all settings have been done, click on Save to save the mission. This mission will then appear in the Missions tab on the FlytBase dashboard.

Click onicon to add a mission.

Above Sea Level (ASL) Absolute altitude of the drone as represented in the model. Use ASL for missions that require global altitude measurements, since the reference is set to the sea level.

To remove a waypoint, click on the icon.

To know more on how to import a mission as a KML file, refer to the following .

Site Management
Mission Management
EGM
documentation
Missions tab in Navigation Drawer
Adding a Mission

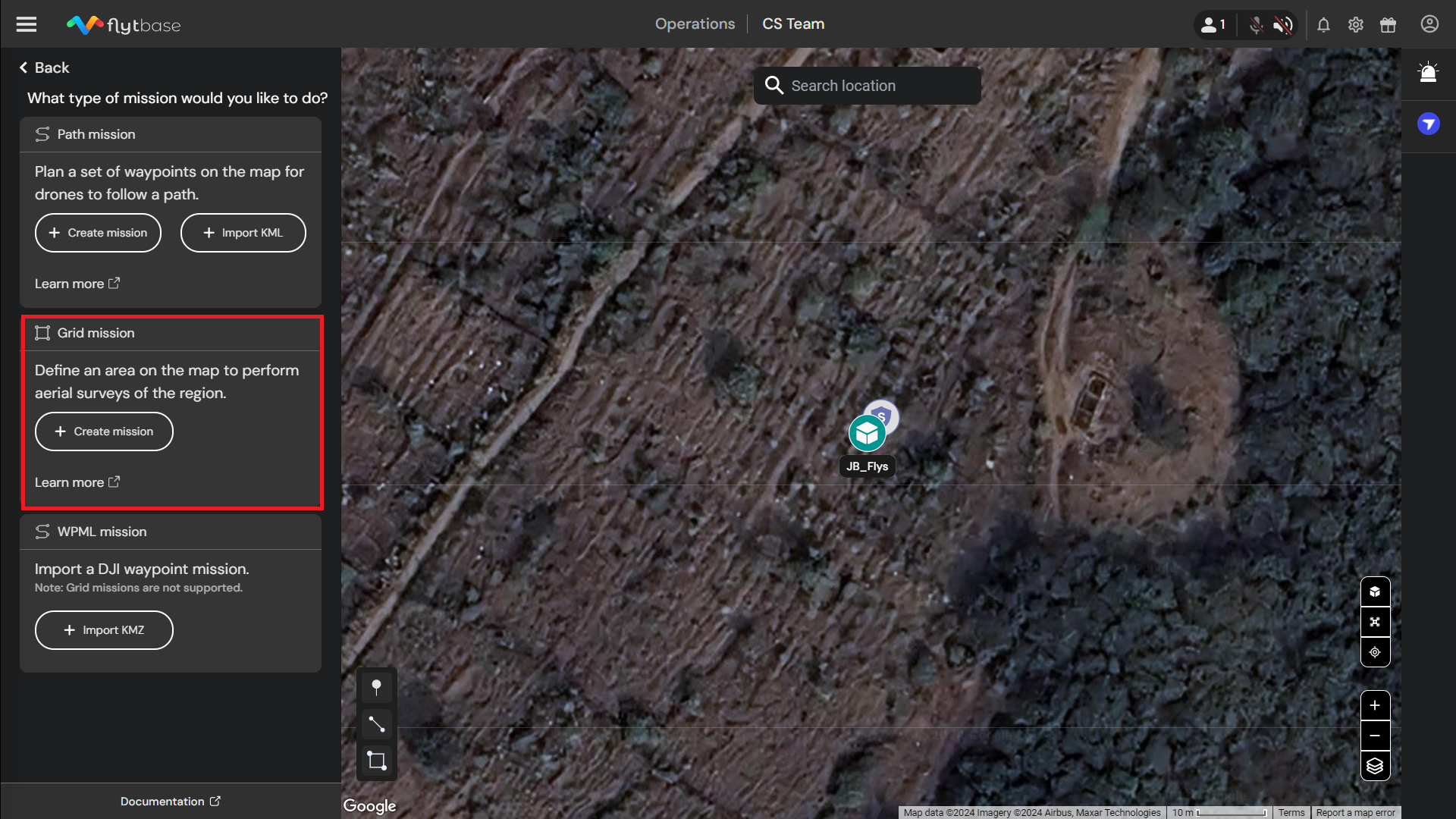

Creating a Grid Mission
Adding a Mission Name
Assigning a Site for a mission
Adding Tags to your mission
Creating a Grid
Grid Mission Overview

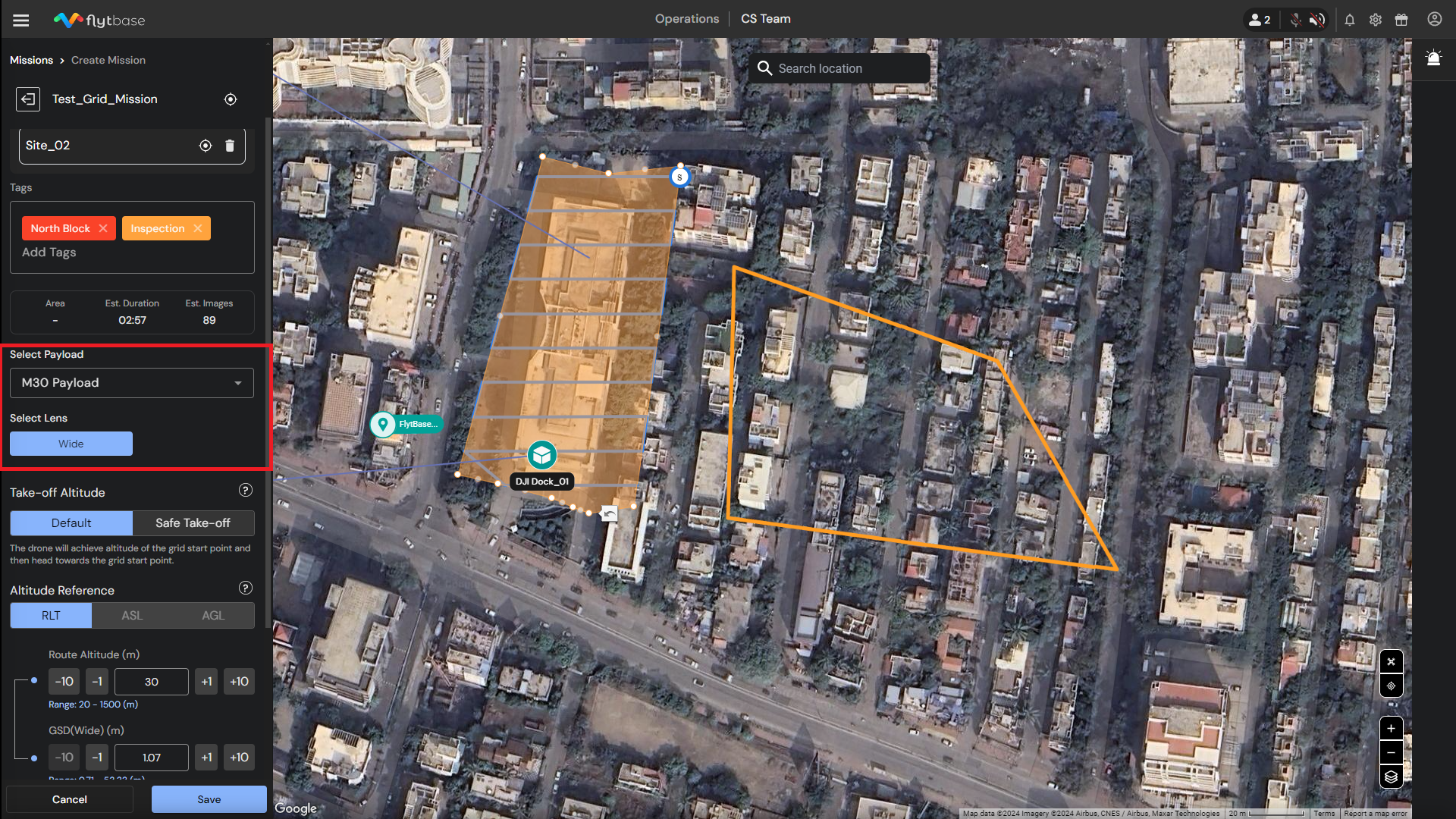

Selecting the drone payload
Selecting Lens for M30 Payload

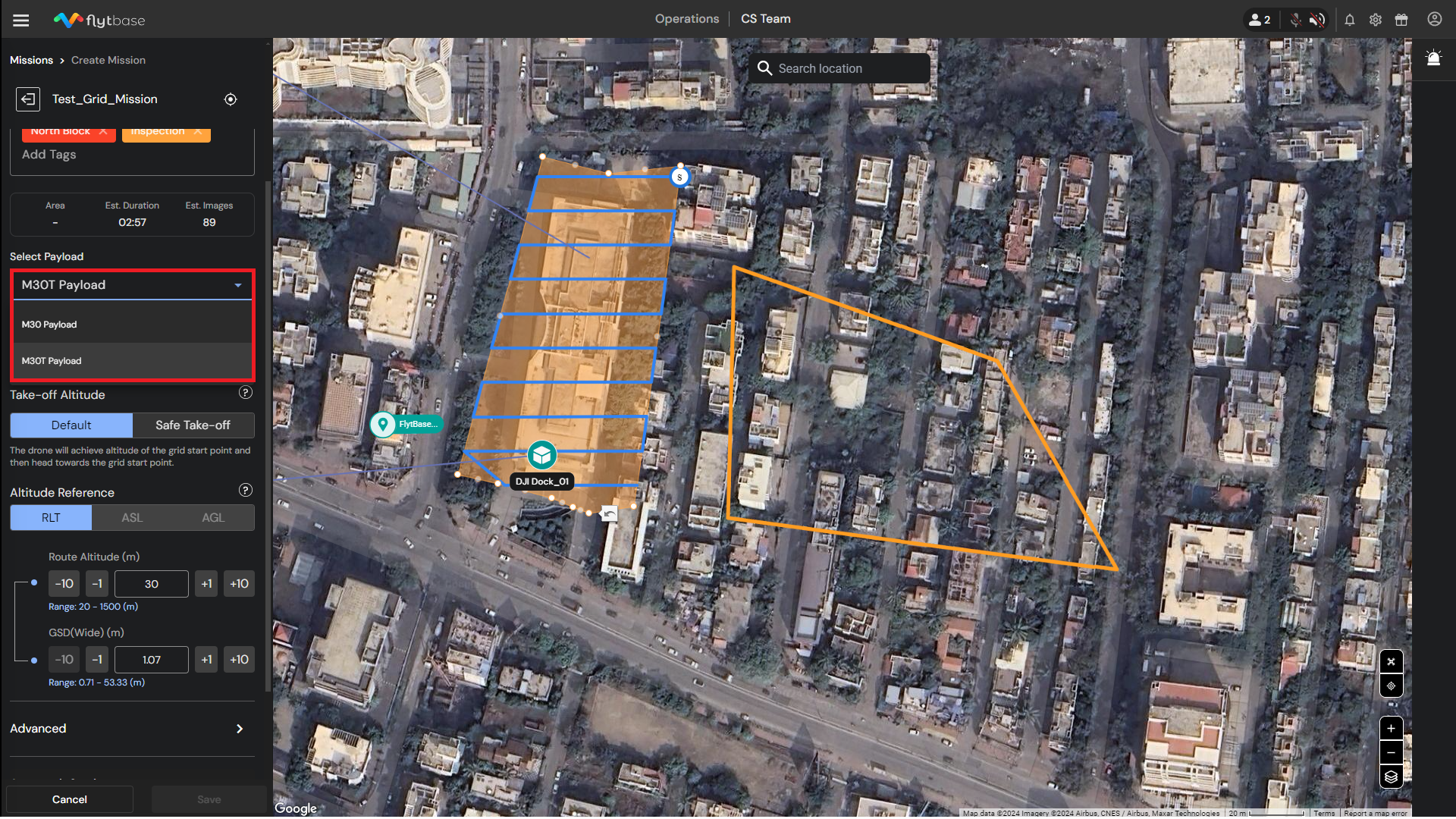

Selecting Lens for M30T Payload
Take-off Altitude settings
Default Take-off Altitude
Safe Take-off Altitude

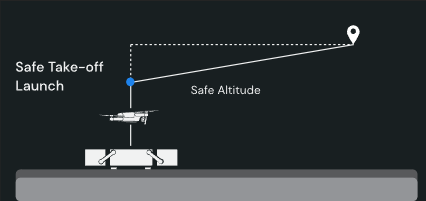

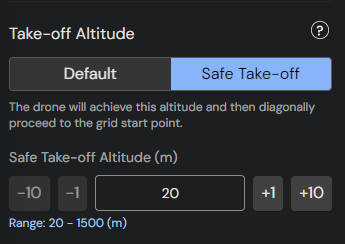

Configuring Safe Take-off Altitude
Route Altitude modes

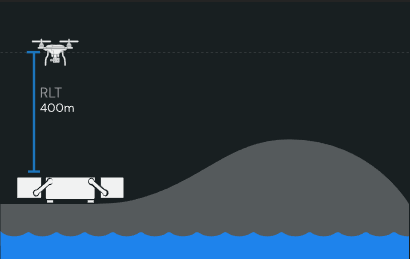

Relative Take-off Point
Above Sea Level

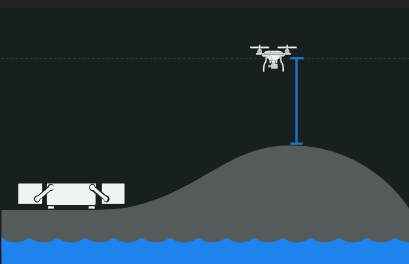

Above Ground Level
Advanced Mission Settings
Configuring the Grid Route Speed

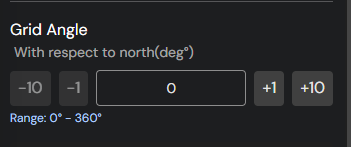

Configuring the Grid Angle

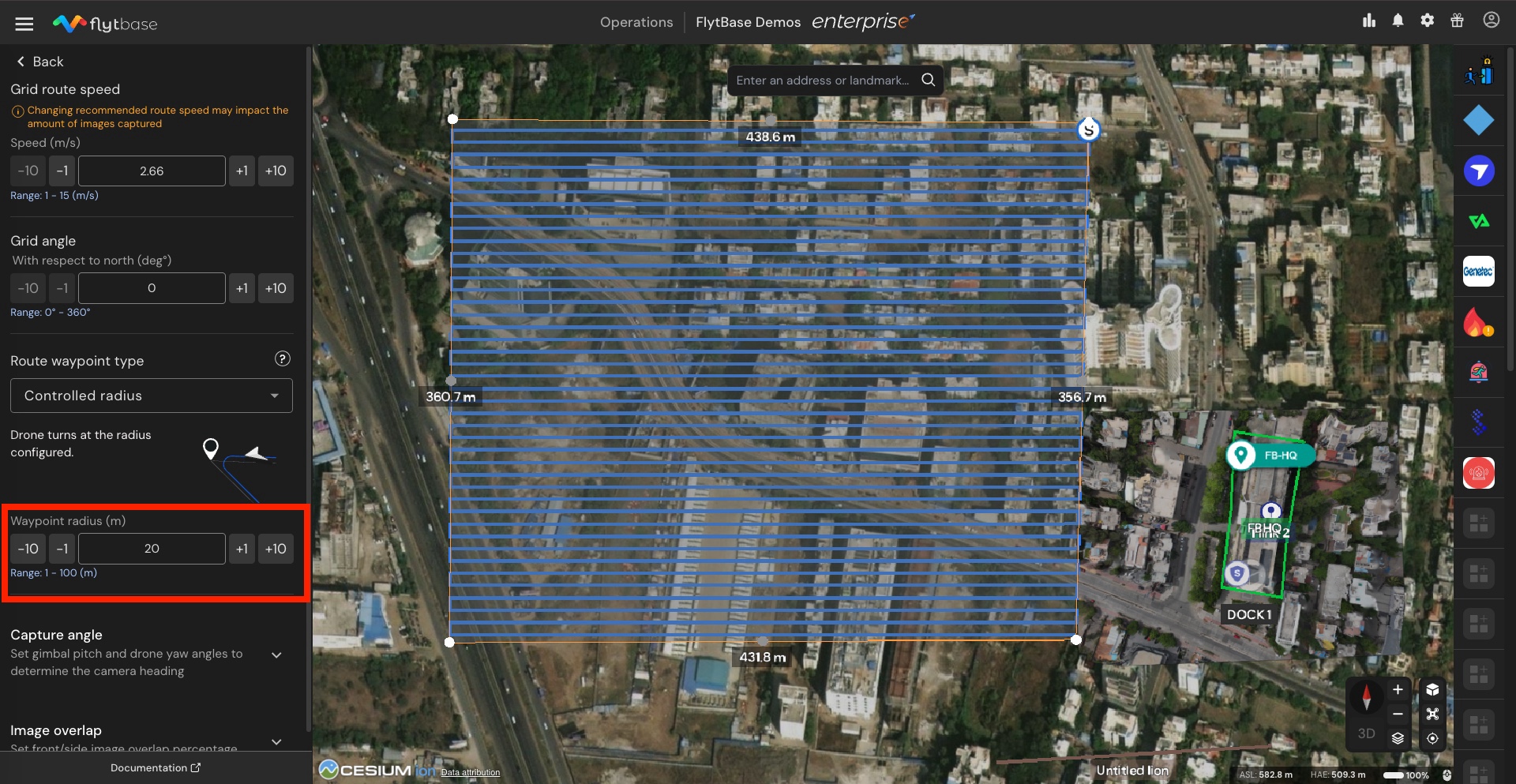

Controller Radius Settings
Setting the Camera Angle

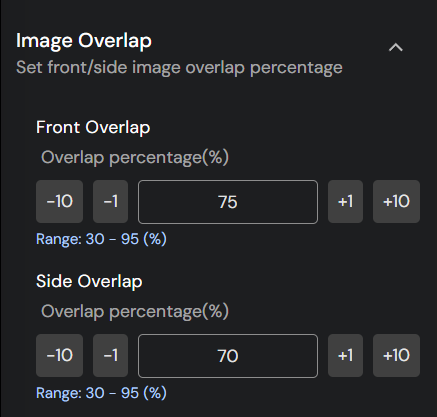

Image Overlap settings

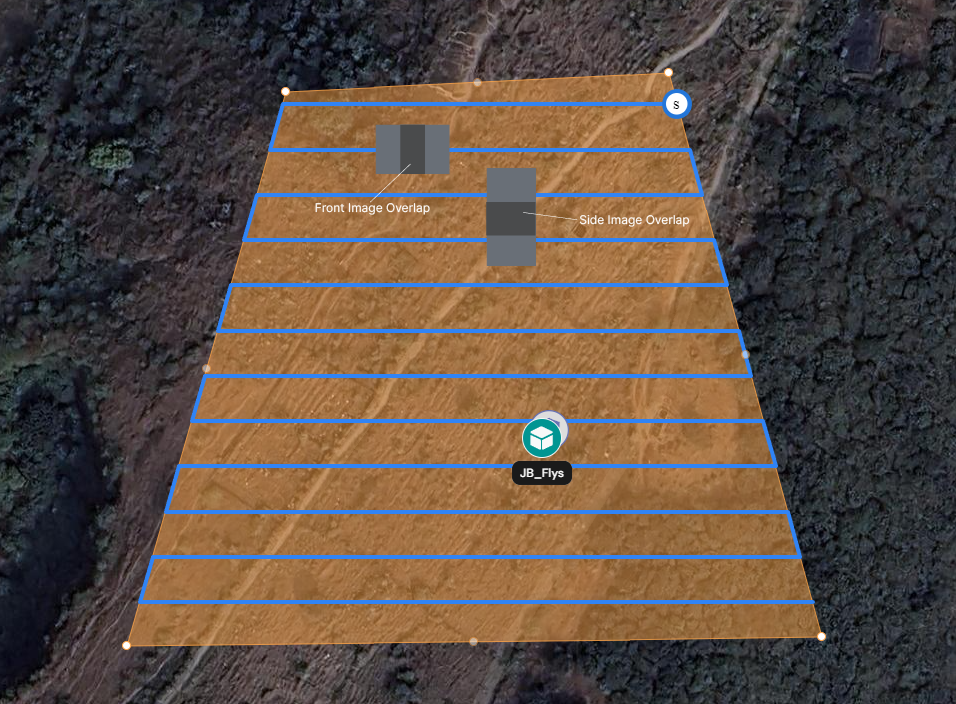

Illustration of Front and Side Overlap of images in Grid Mission

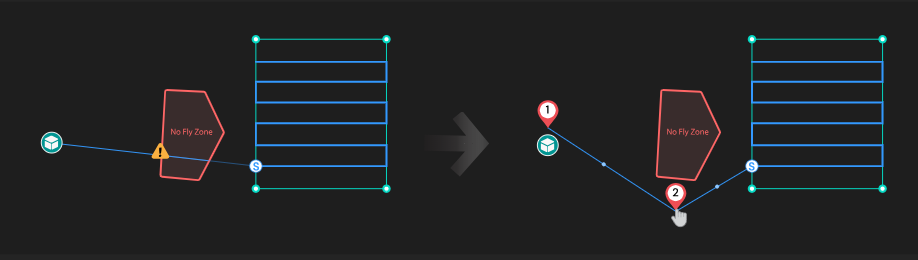

Custom Approach Route for Grid Mission
Drone Approach Settings (in Red), and Waypoint toggles (in Green)

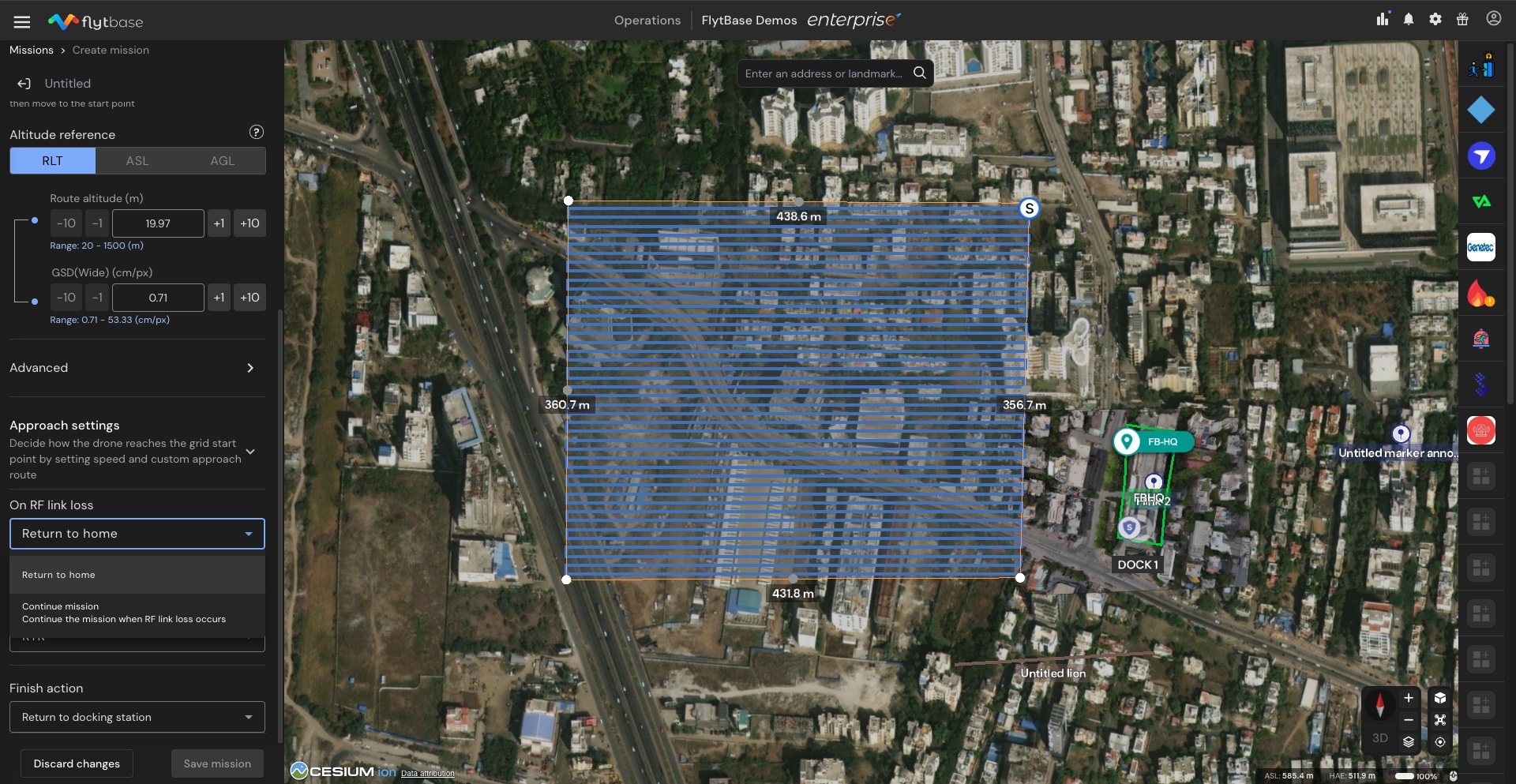

RF Link Loss Condition

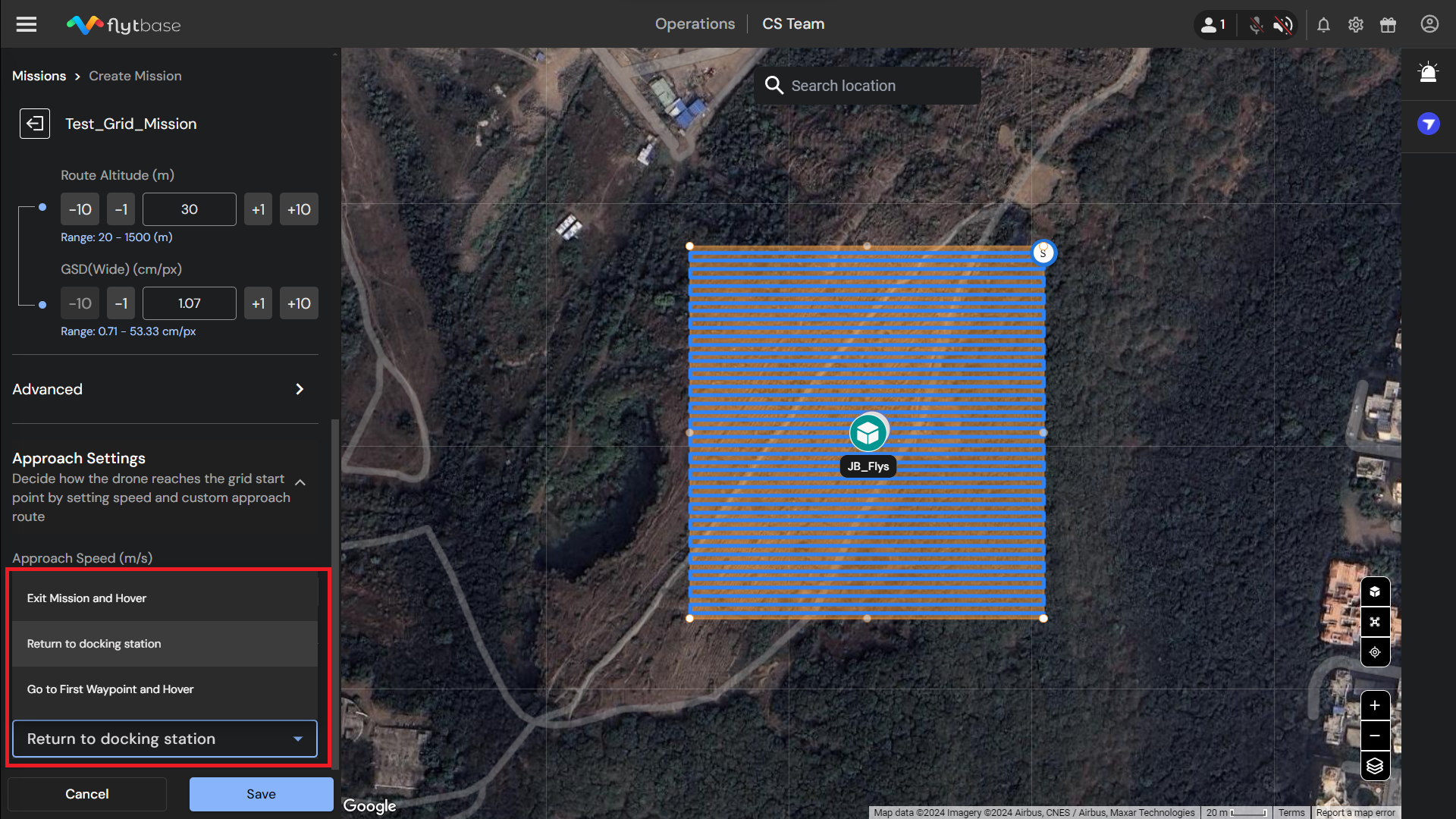

Finish Action

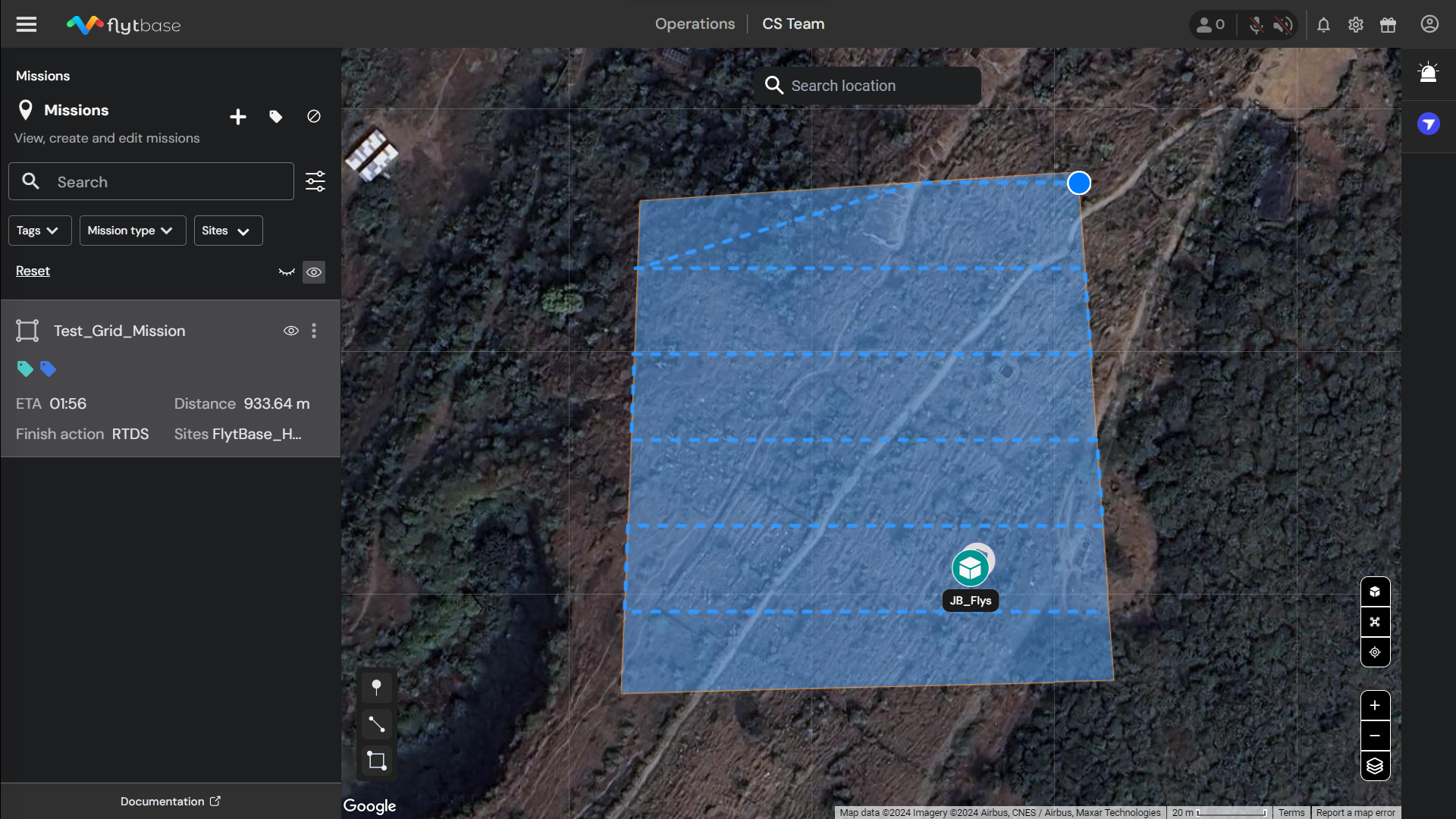

Save Mission
