Speaker and Spotlight

Learn how to configure and use the speaker and spotlight payload using FlytBase.

With FlytBase, you can easily manage speaker and spotlight payloads on your drone. Here's what you can do:

  • Save and Broadcast Announcements: Store messages, or draft a quick message, and use the text-to-speech feature to make announcements.

  • Adjust Spotlight Settings: Change the brightness and switch between spotlight or strobe modes.

  • Activate Siren: Set off a siren sound and strobe light to indicate a critical situation or to deter intruders.

Such systems enhance your drone's capabilities for perimeter security or search and rescue applications.

Currently, the speaker and spotlight payloads supported include:

  • For DJI Dock 1/M30 Series drones (M30, M30T): CZI LP12

  • For DJI Dock 2/M3D Series drones (M3D, M3TD):

    • JZ M3D Quick Search Kit

    • Cytop MLV3D

    • CZI MP20

Reach out to [email protected] to know more.

Speaker

Adding Announcements

To add announcements to a payload, follow these steps:

  • Attaching the Payload: Attach the payload to the drone, and power on the drone.

  • Navigating to the Payload Tab: On the FlytBase Dashboard, go to the Device Management section, and select the Payload tab.

Payload Tab for the selected device

The Payload tab allows you to perform the following operations:

  • Add Audio for playback: You can add audio files that can be played by any drone using its payload.

[ modify this section so that an image for this feature is added ] [You can do two things in payload section - add audio files, or add text announcements ]

  • Creating an Announcement: Click on the Add button. This action will bring up a dialog box where you can configure your announcement. In the dialog box, enter a name for your announcement and type your announcement text.

Adding a new announcement
  • Saving the Announcement: After entering your information, click Save to finalize the announcement.

You can create up to twenty announcements for each payload.

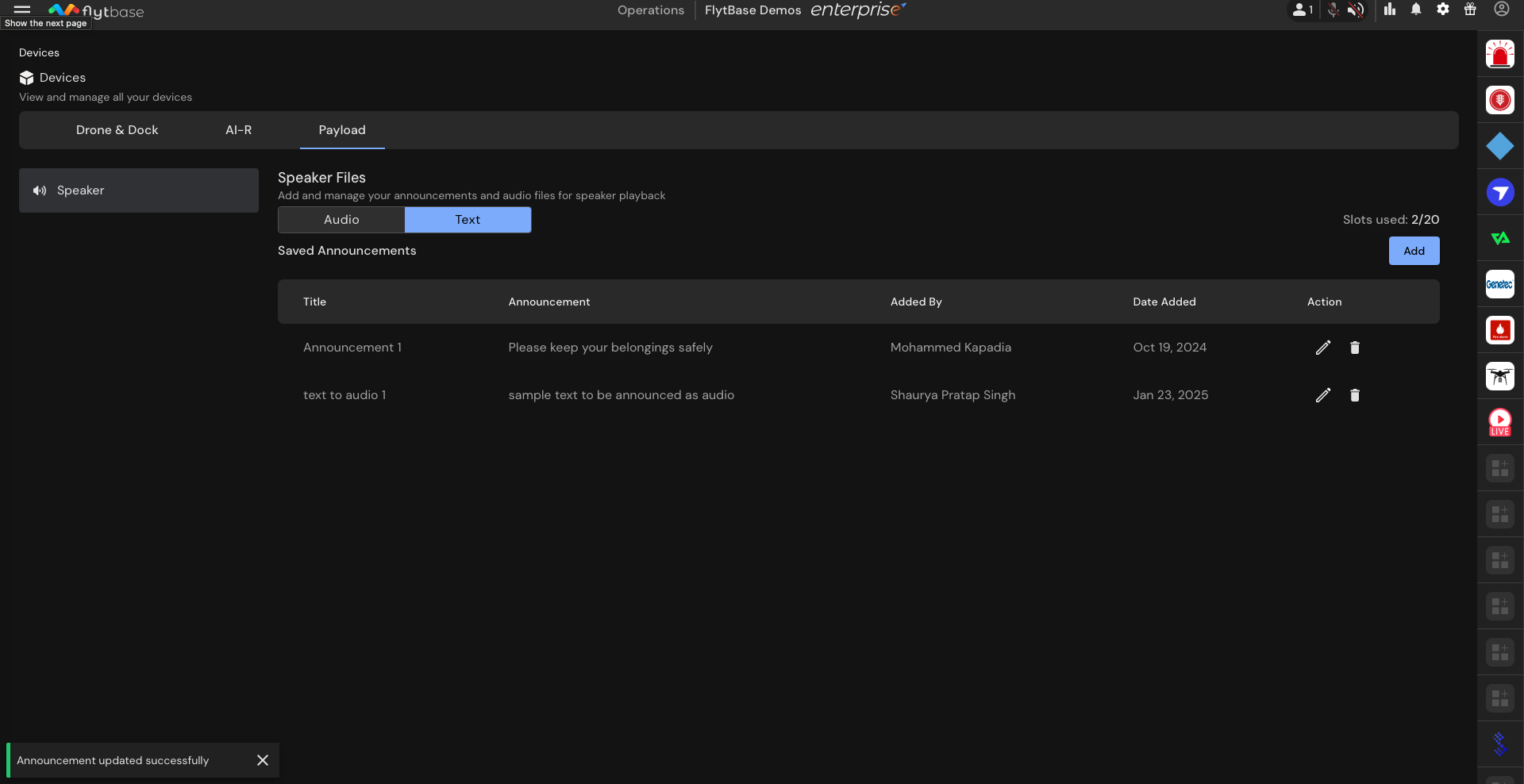

Saved announcements

Operating the Speaker

To use the Payload, navigate to the Fleet view and select the Payload icon adjacent to the drone video feed widget.

The payload widget would expand, allowing access to speaker and spotlight tabs.

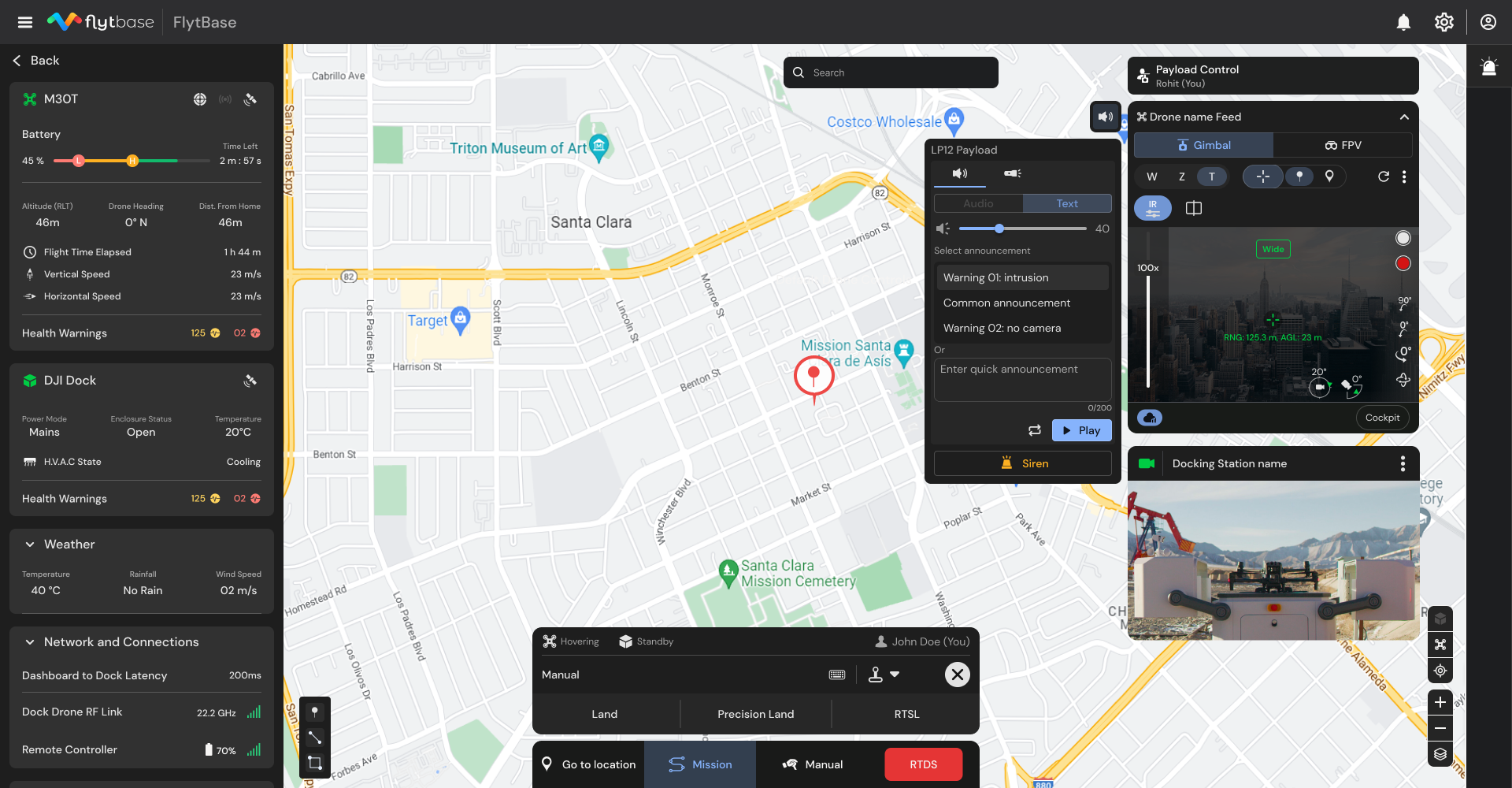

Expanded Payload widget

Play a saved Announcement

  • In the expanded Payload widget, click on the Speaker tab.

  • Choose the desired announcement from the list of saved announcements and click Play.

  • To keep repeating the selected message, click on the icon. The message will be repeated as long as the icon is not pressed again or message playback is stopped from the Play/Stop button.

Select Announcement

Quick Announcement

For making an urgent custom announcement:

  • Type your message (up to 200 characters) in the Quick Announcement box.

  • Click Play to broadcast your message immediately.

Quick Announcement

Speaker Volume Settings

Adjusting the speaker volume:

  • Use the volume bar to increase or decrease the volume according to your preference.

  • The volume can be adjusted within a range from 0 to 40.

Spotlight Settings

If the payload includes a controllable spotlight (such as in LP12), it can be operated through the Payload widget.

Activating the Spotlight

To control the spotlight:

  • Click on the Spotlight in the Payload widget.

  • Use the toggle button to turn the spotlight on or off.

Adjusting Brightness

Adjust the brightness of the spotlight:

  • Move the brightness slider to the right to increase brightness or to the left to decrease it.

Spotlight Modes

The spotlight offers two modes:

  • Static Mode: The spotlight remains continuously on at a consistent brightness.

  • Strobe Mode: The spotlight alternates between on and off, creating a pulsating effect.

Spotlight Controls

Siren

If the payload is equipped with a Siren feature, you can activate it through the Payload widget on the FlytBase Dashboard.

How to Activate the Siren

  • Navigate to the Payload widget.

  • Locate the Siren button at the bottom of the widget; this button is common for both the speaker and the spotlight.

  • Click the Siren button to activate the siren, which switches on the spotlight in strobe mode and plays the default siren sound.

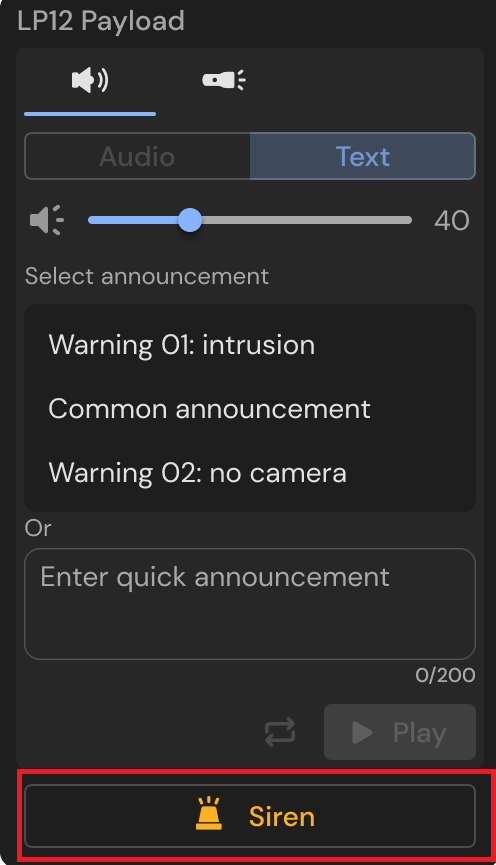

Siren button
